A structural calculation note for a modified shipping container is an essential engineering document that validates the safety, stability, and compliance of the container once transformed.
The raw container is designed as a monocoque structure (the corrugated sheet metal contributes to its rigidity). As soon as the walls are cut to insert doors or ventilation, or when heavy loads are added (generators, batteries, pumps), its structural behavior is altered. The structural analysis serves to prove that the container will not bend or collapse under these new stresses.
Here is a detailed look at what this document contains, structured by key steps.
This is the basis of the document. The engineer defines the rules of the game in it.
Reference standards: Generally the Eurocodes (if in Europe):
Eurocode 1 (Actions on structures: snow, wind, live loads).
Eurocode 3 (Design of steel structures).
Sometimes the ISO 1496 standards (specific to maritime container testing).
Materials: The container is often made of Corten steel (high yield strength, corrosion resistant). The note must specify the characteristics of this steel (yield strength $Re$ , tensile strength $Rm$ ) and those of the steel used for reinforcements (often S235 or S275).
Geometry: Container dimensions (20 feet, 40 feet, High Cube) and initial condition (new or "Last Trip").
The engineer lists all the forces that will be applied to the box.
Permanent loads (G): Weight of empty container + insulation + cladding + weight of fixed industrial equipment (most important).
Operating costs (Q): Weight of maintenance technicians, tools placed on the floor.
Climatic loads: Weight of snow on the roof, wind pressure on the walls (very important if the container is outdoors).
Dynamic Loads (Transport & Lifting): This is often the critical point. Will the equipped container be lifted by a crane? Transported by truck? Accelerations during transport (braking, turning) create considerable forces.
That's the heart of the problem. A container derives its rigidity from its corrugated walls.
The impact of openings: The note must demonstrate that each opening (for a ventilation grille, an access door, a cable passage) has been compensated.
Reinforcement sizing (Frames): A steel tube frame (bent sheet metal, square tubing) is welded around each opening. The note calculates the required cross-section of these tubes to "replace" the removed sheet metal and transmit the forces.

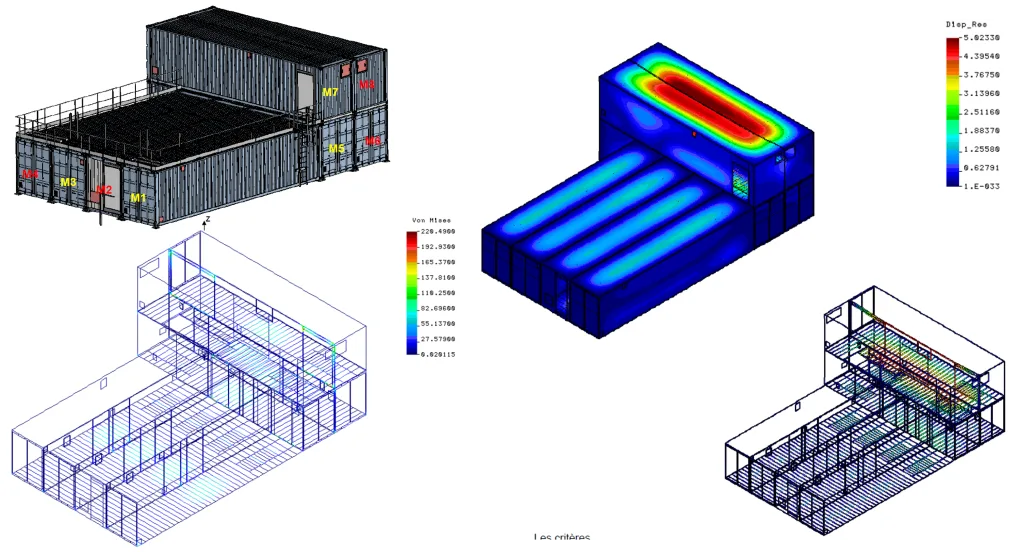

For complex integrations, Finite Element Analysis (FEA) is used . A digital twin of the container is created to simulate the forces.
The main checks are:
Stress verification (ULS – Ultimate Limit State): The steel must not yield (deform permanently). We verify that the Von Mises stress remains below the steel's elastic limit.
Deformation verification (SLS – Serviceability Limit State): The "deflection" (bending) of the floor under the weight of the equipment or of the roof under the snow must not exceed a certain value (e.g., $L/200$ , i.e., 3cm for a 6m container) so as not to prevent the opening of the doors or crack the internal partitions.
Floor check: Is the original floor (marine plywood on joists) sufficient to support concentrated equipment weighing 2 tonnes? Often, the note prescribes the addition of extra joists under the floor.
In industry, two scenarios are often key:
Lifting: The modified container (often heavier and with a shifted center of gravity due to the machinery) is lifted by its four upper corners (twist-locks). The inspection must ensure that the chassis will not buckle or break.
Stacking: If another container is placed on top, can the corner posts support the load?
The note ends with:
A favorable or unfavorable opinion.
Detailed plans of the reinforcements to be welded (type of profiles, thickness of welds).
Specifications for ground anchoring (sizing of anchors or concrete blocks).
Insurance: In case of accident (collapse, breakage during lifting), the insurance will not cover anything without this note.
Transport (CSC Certification): If the container is to be transported by ship after modification, the CSC plate (the container's "registration document") becomes invalid due to the modifications. A structural analysis report is required to have the container recertified by an organization such as Bureau Veritas or DNV.
Machine operation: Excessive floor deformation can misalign a drive shaft or create vibrations harmful to onboard equipment.
